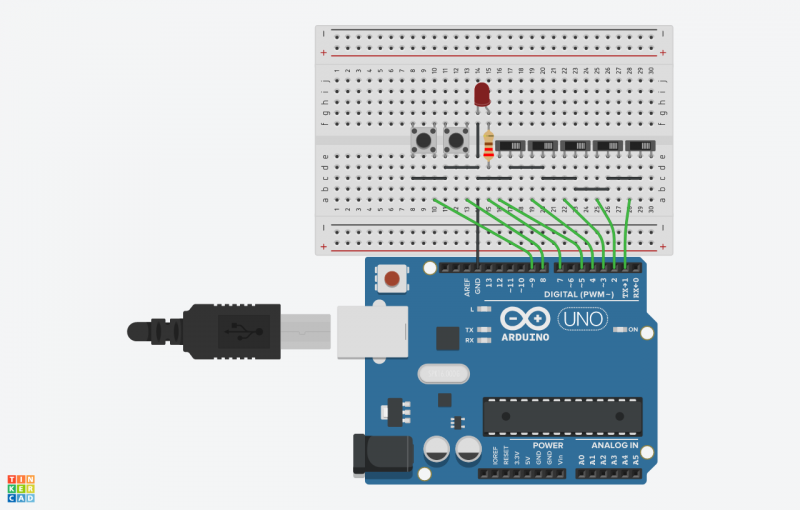

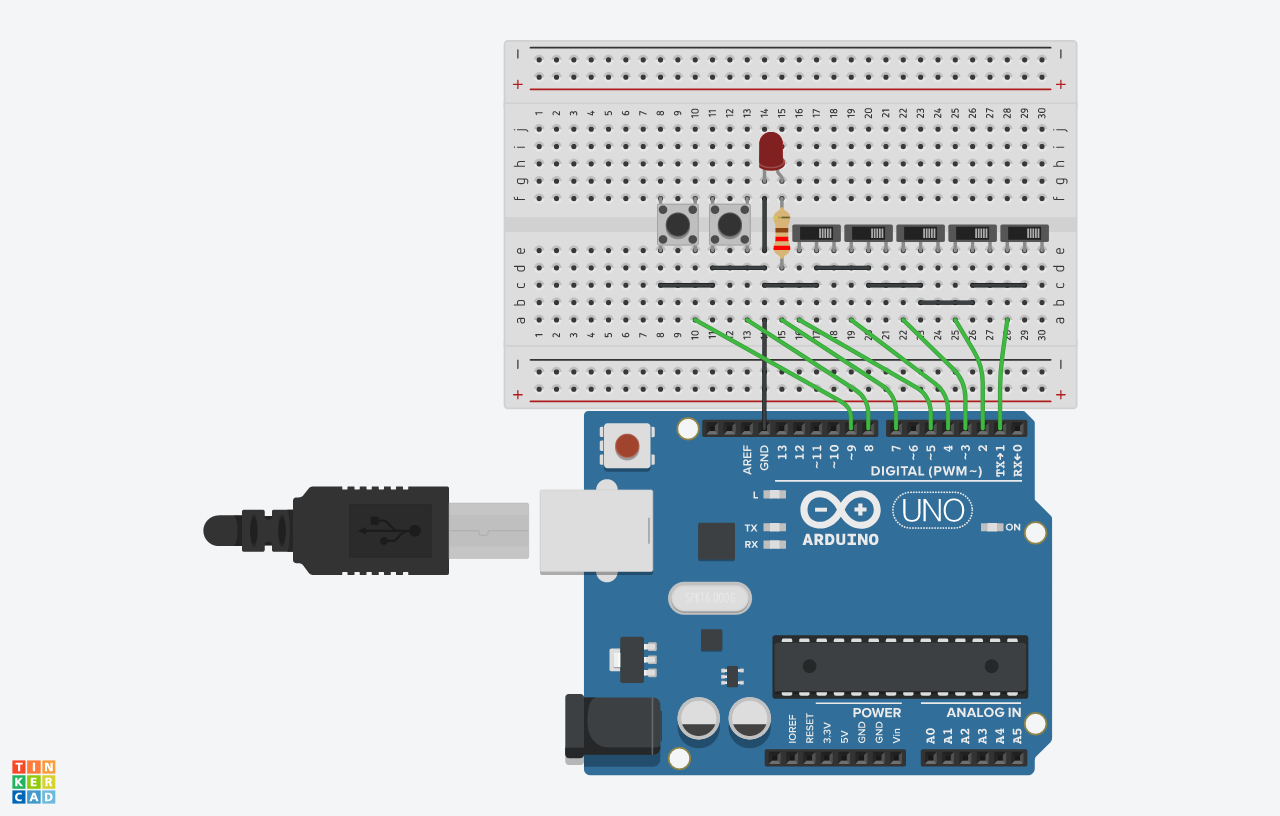

Arduino Matematik Önermeler Materyali

int butonp = 8;
//siyah
int butonq = 9;
//beyaz
int led = 7;
//yeşil-gri
int p = 0;
int q = 0;
int dugme_ve = 5;
//kırmızı
int dugme_veya = 4;
//turuncu
int dugme_yada = 3;
//sarı
int dugme_ise = 2;
//mor
int dugme_ancak = 1;
//mavi
void setup() {
  pinMode(led, OUTPUT);
  pinMode(butonp, INPUT_PULLUP);
  pinMode(butonq, INPUT_PULLUP);
  pinMode(dugme_ve, INPUT_PULLUP);
  pinMode(dugme_veya, INPUT_PULLUP);
  pinMode(dugme_yada, INPUT_PULLUP);
  pinMode(dugme_ise, INPUT_PULLUP);
  pinMode(dugme_ancak, INPUT_PULLUP);
}
void ve() {
  if ((q == LOW) && (p == LOW)) {
    digitalWrite(led, HIGH);
    delay(250);
  }
  else {
    digitalWrite(led, LOW);
    delay(250);
  }
}
void veya() {
  if ((q == LOW) or (p == LOW)) {
    digitalWrite(led, HIGH);
    delay(250);
  }
  else {
    digitalWrite(led, LOW);
    delay(250);
  }
}

void yada() {
  if ((q == LOW) && (p == LOW)) {
    digitalWrite(led, LOW);
    delay(250);
  }
  else if ((q == LOW) && (p == HIGH)) {
    digitalWrite(led, HIGH);
    delay(250);
  }
  else if ((q == HIGH) && (p == LOW)) {
    digitalWrite(led, HIGH);
    delay(250);
  }

  else  {
    digitalWrite(led, LOW);
    delay(250);
  }
}

void ise() {
  if ((q == LOW) && (p == LOW)) {
    digitalWrite(led, HIGH);
    delay(250);
  }
  else if ((q == HIGH) && (p == LOW)) {
    digitalWrite(led, LOW);
    delay(250);
  }

  else if ((q == HIGH) && (p == LOW)) {
    digitalWrite(led, HIGH);
    delay(250);
  }

  else  {
    digitalWrite(led, HIGH);
    delay(250);
  }
}
void ancak() {
  if ((q == LOW) && (p == LOW)) {
    digitalWrite(led, HIGH);
    delay(250);
  }

  else if ((q == HIGH) && (p == LOW)) {
    digitalWrite(led, LOW);
    delay(250);
  }

  else if ((q == LOW) && (p == HIGH)) {
    digitalWrite(led, LOW);
    delay(250);
  }

  else  {
    digitalWrite(led, HIGH);
    delay(250);
  }
}
void loop() {
  digitalWrite(led, LOW);
  p = digitalRead(butonp);
  q = digitalRead(butonq);
  if (digitalRead(dugme_ve) == LOW) {
    ve();
    delay(50);
  }
  else if (digitalRead(dugme_veya) == LOW) {
    veya();
    delay(50);
  }
  else if (digitalRead(dugme_yada) == LOW) {
    yada();
    delay(50);
  }
  else if (digitalRead(dugme_ise) == LOW) {
    ise();
    delay(50);
  }
  else if (digitalRead(dugme_ancak) == LOW) {
    ancak();
    delay(50);
  }
  else {
    digitalWrite(led, LOW);
    delay(50);
  }
}
